Efficient large-format laser machine for bevel cutting, in perfect combination with the FLEX automated loading and unloading system
Get in touch with your contact at Messer Cutting Systems right away, find out more about the benefits!
Dimensions
+ Sheet size 2,000 x 4,000 mm
+ Machine width approx. 5,000 mm | Width handling system approx. 15,600 mm
+ Machine length: approx. 7,000 mm | Length handling system approx. 6,500 mm
Equipment/Included Services
+ Shuttle cutting table with Filter (non ATEX Version)
+ Encloser 6kW Laser power

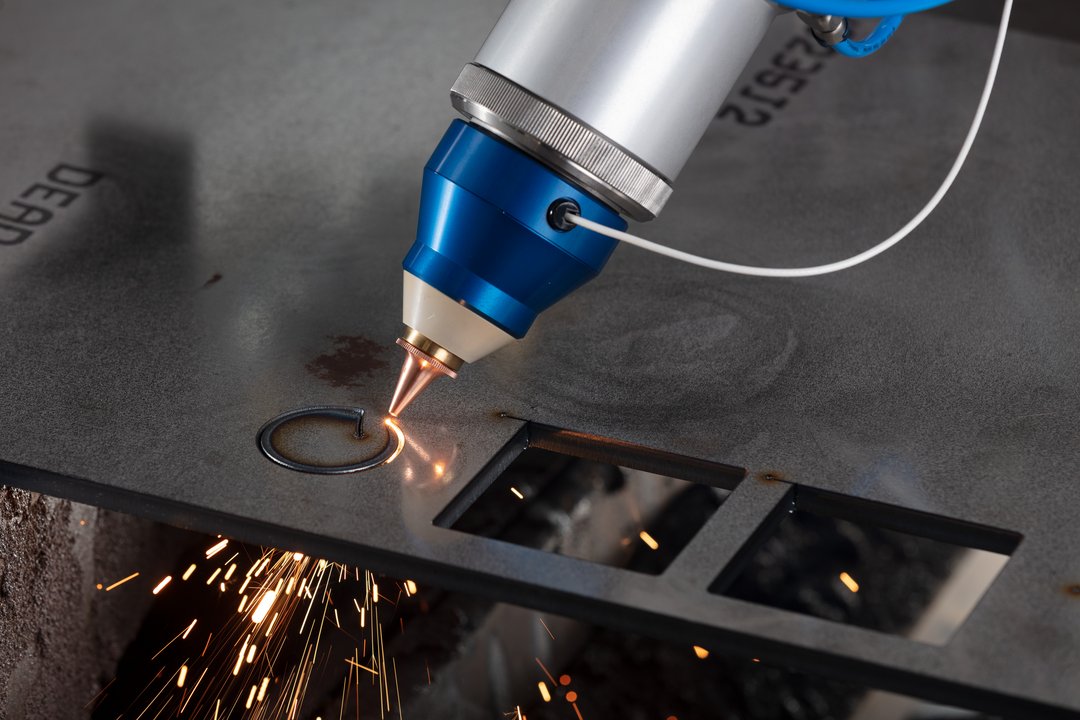

+ Laser bevel head | LNC-Terminal
+ 6 kW IPG Laser source | Gas Mixer Unit
+ Controller Global Control Screen with touch display
+ Software OmniWin Professional | Option Bevel | Dongle H
+ Training OmniWin 5d | OmniBevel 5d | GC 2d | Laser cutting 5d
+ Installation

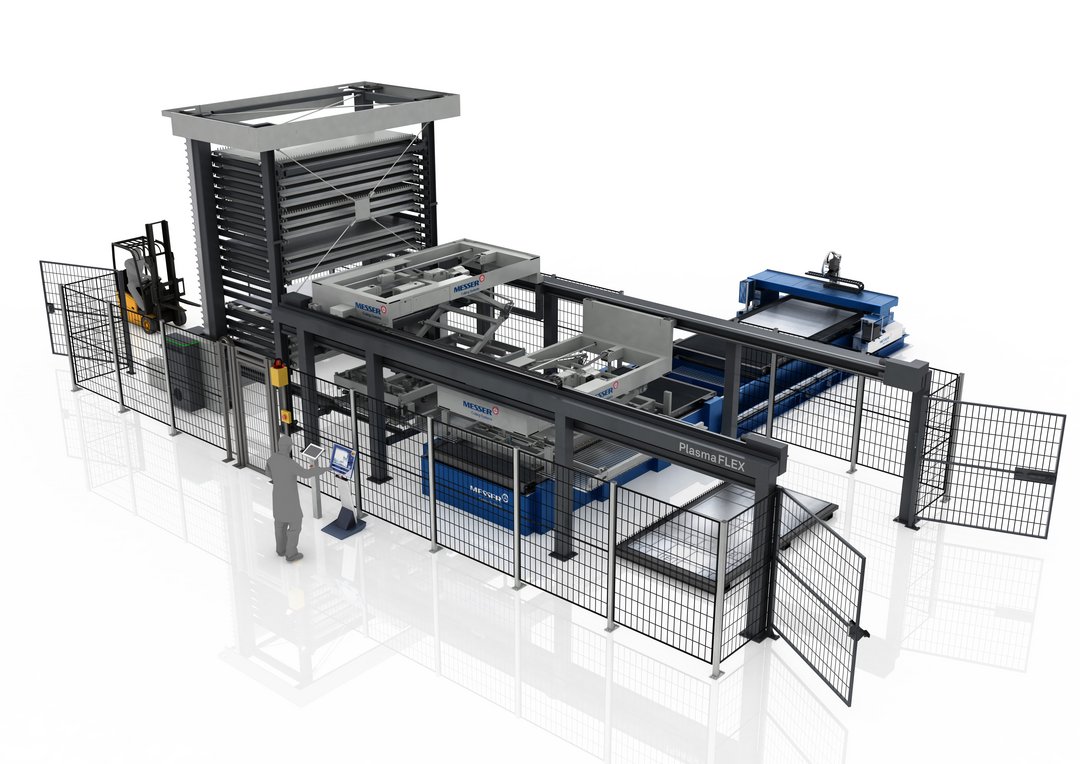

+ Handling system with loading and unloading unit | control system | safety device
(Delivery date to be confirmed | EXW | 1 year warranty | Optional services: transportation incl. travel expenses)

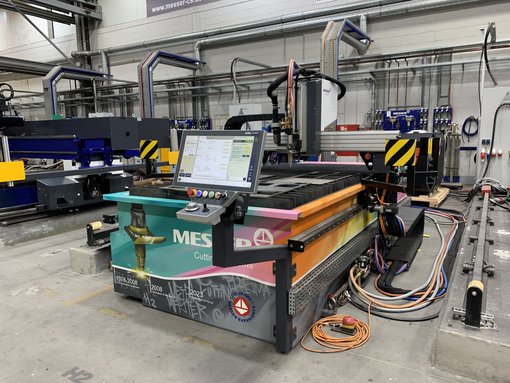

The machine shown is a sample model
